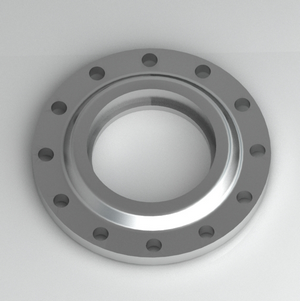

Description of Socket Welding Flange
Socket Welding Flange antong supplies socket weld flange, SW forged Flange, Socket Welding Flange in forged steel, Stainless Steel, AS,CS etc..
Specification of Socket Welding Flange
SW forged flange is similar to the slip-on flange, same to socket welding flange, but the bore is counter-bored to accept pipe. The diameter of the remaining bore is the same as the inside diameter of the pipe. The Socket Welding Flange is attached to the pipe by a fillet weld around the hub of the flange. An optional internal weld may be applied in high stress applications. The biggest use of Socket Flanges is in high pressure systems such as hydraulic and steam lines.
Specification of Socket Welding Flange
- B16.5 Socket Welding 150lb Flange
- B16.5 Socket Welding 300lb Flange
- B16.5 Socket Welding 600lb Flange
- B16.5 Socket Welding 1500lb Flange
Description of Socket Welding Flange
- Type: SW Flange
- Material: Carbon steel: A105,SS400,SF440 RST37.2,S235JRG2,P250GH,C22.8, Stainless Steel: F304 F304L F316 F316L 316Ti, Copper etc.
- Standard: ANSI,JIS,DIN,BS4504,SABS1123,EN1092-1, UNI,AS2129,GOST-12820
- Size: 1/2-78 inch (DN15-DN2000)
- Pressure: ANSI class 150,300,600,1500,2500, DIN PN6,PN10,PN16,PN25,PN40,PN64,PN100,PN160
- Packing: No Fumigate or Fumigate Plywood/Wood Pallet or Case
- Surface Treatment: Anti-rust Oil, Transparent/Yellow/Black Anti-rust Paint,Zinc,Hot dipped Galvanized.
- Usage: Oil Field, Offshore, Water System, Shipbuilding, Natural Gas, Electric Power, Pipe Projects etc.
|
